DESIGN & 3D MODELLING

CADraughting specializes in Design for Manufacture. Our experience in 3D design originates from the introduction of CAD into industry in the 1980s.

Experience and expertise exist in using and teaching many sophisticated CAD packages. SolidWorks is currently used for feature based, parametric modelling and the creation of associative drawings.

We can work independently on new projects or with your drawing office to offer advanced 3D design and modelling, and provide a flexible service to cover staff absence or during the recruitment process.

Client markets include:-

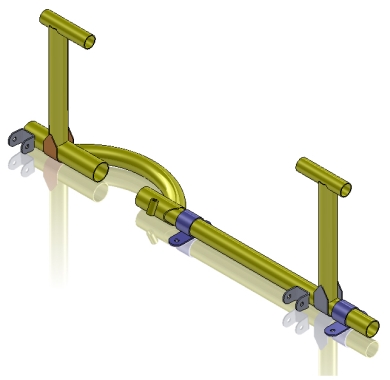

Light aircraft

Sub Aqua

Bespoke furniture

Innovative products

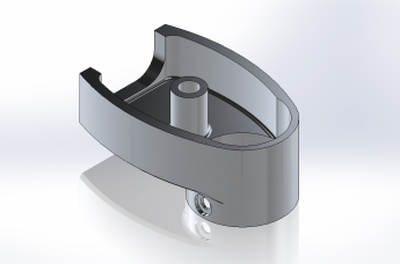

Plastic mouldings

Special

purpose

machinery



SERVICES:

  • Engineering design and draughting for manufacture
  • Creation of 3D models from 2D CAD files or paper drawings
  • Helping inventors get their ideas into manufacture
  • Assessing the suitability of CAD for clients' applications
  • 3D evaluation of designs before manufacture, including clash detection and motion simulation
